CLKA-P

Product Information

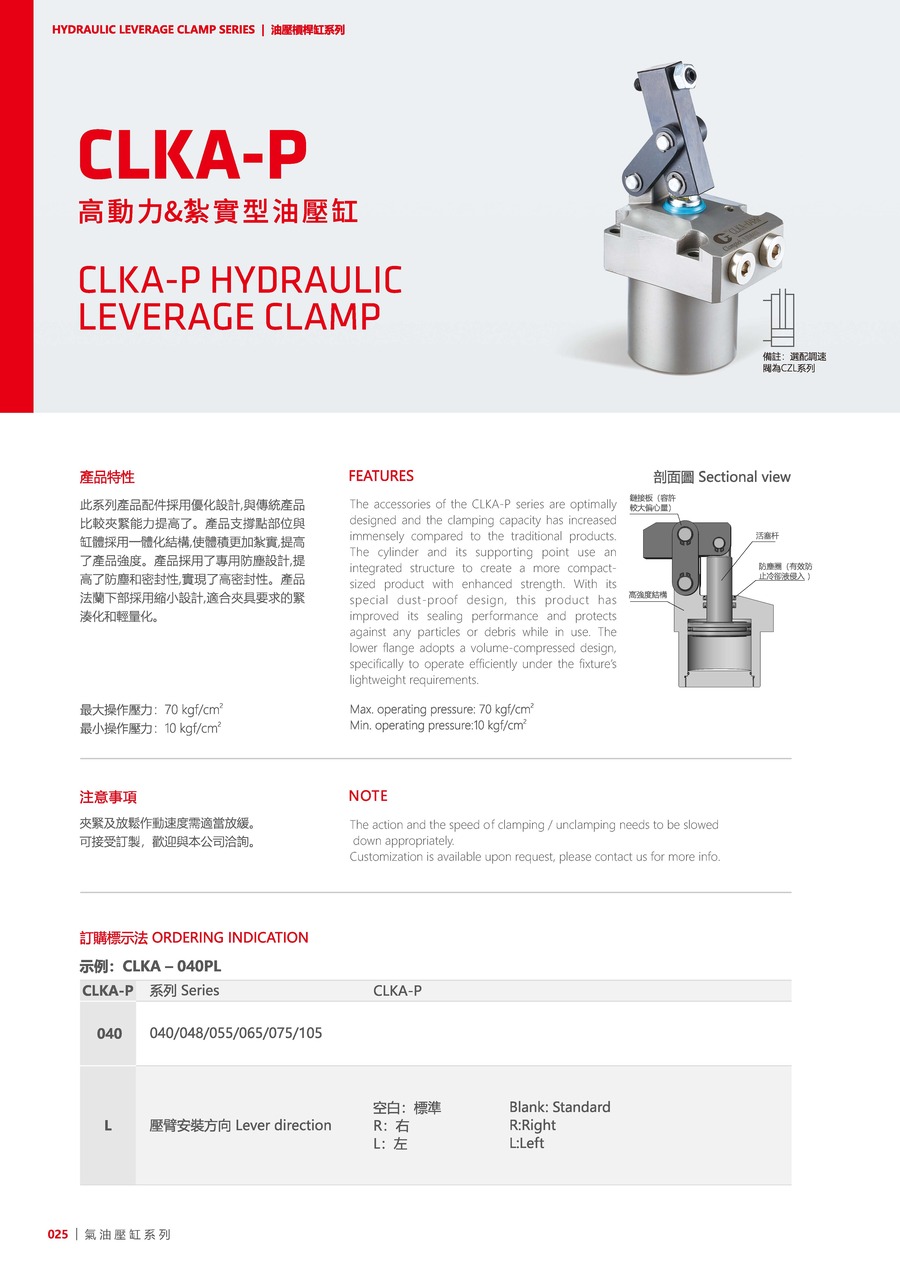

The accessories of the CLKA-P series are optimally designed and the clamping capacity has increased immensely compared to the traditional products. The cylinder and its supporting point use an integrated structure to create a more compactsized product with enhanced strength. With its special dust-proof design, this product has improved its sealing performance and protects against any particles or debris while in use. The lower flange adopts a volume-compressed design, specifically to operate efficiently under the fixture's lightweight requirements.

Max. operating pressure: 70 kgf/cm²
Min. operating pressure: 10 kgf/cm²
NOTE:
The action and the speed of clamping/unclamping needs to be slowed down appropriately.
Customization is available upon request, please contact us for more info.

Usable fluid:
ISO-VG-32 hydraulic oil equivalent to ISO viscosity grade.

Ordering Indication

CLKA-P
040
L

Product Information

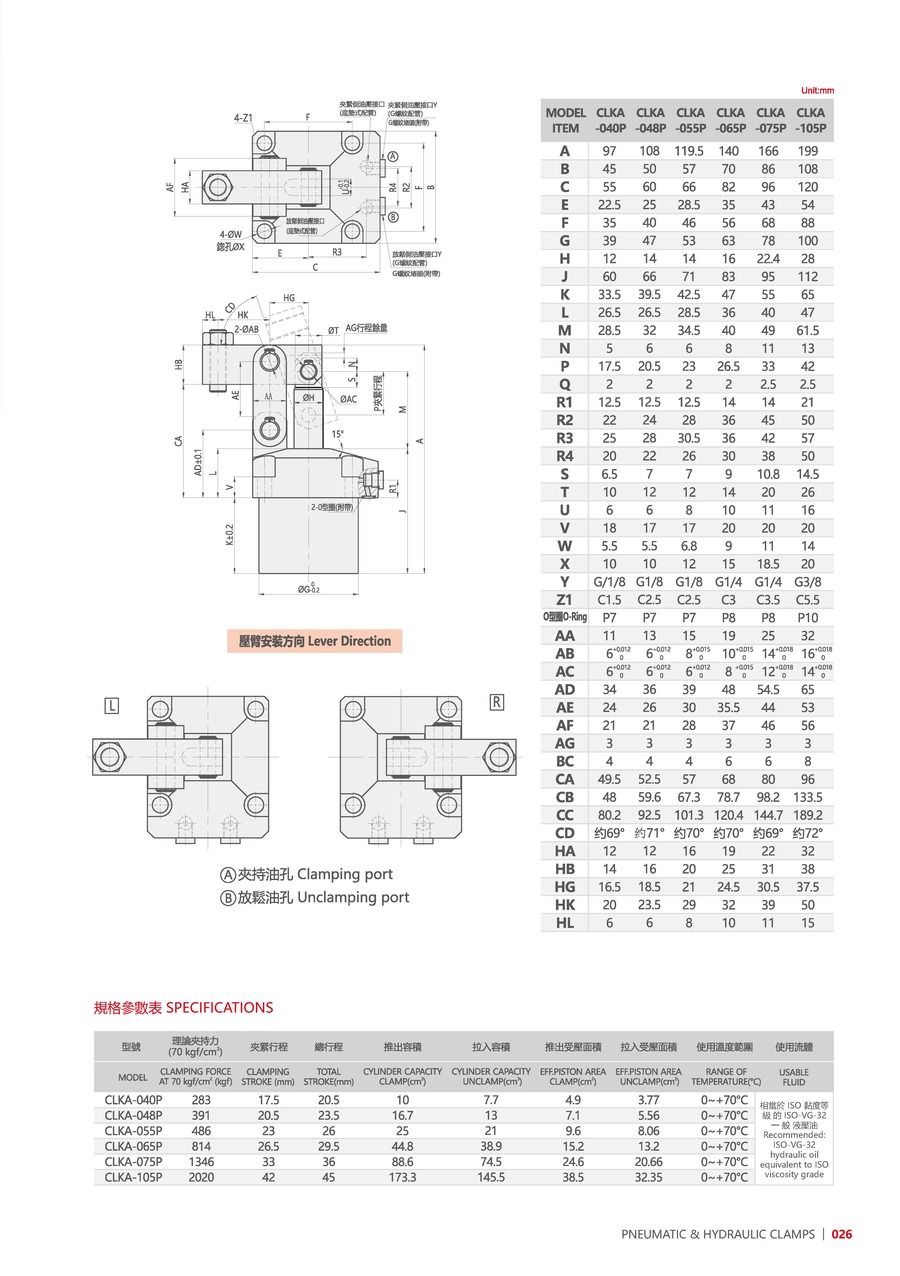

Model CLKA-040P CLKA-048P CLKA-055P CLKA-065P CLKA-075P CLKA-105P
Clamping Force(70kgf/cm²) 283 391 486 814 1346 2020
Clamping Stroke(mm) 17.5 20.5 23 26.5 33 42
Total Stroke(mm) 20.5 23.5 26 29.5 36 45
Cylinder Capacity Clamp(cm³) 10 16.7 25 44.8 88.6 173.3
Cylinder Capacity Unclamp(cm³) 7.7 13 21 38.9 74.5 145.5
Eff. Piston Area Clamp(cm²) 4.9 7.1 9.6 15.2 24.6 38.5
Eff. Piston Area Unclamp(cm²) 3.77 5.56 8.06 13.2 20.66 32.35
Range of Temperature(°C) 0~+70°C 0~+70°C 0~+70°C 0~+70°C 0~+70°C 0~+70°C
